Home Professional AudioLine Array Speaker SystemOutdoor Line Array Loudspeaker Weather-Resistant Passive Line Array Full-Range Loudspeaker D7734

2×12" LF, 2×3.5" MF, 2×1.75" HF ; 600Hz ; LF: 800W, MF+HF: 300W

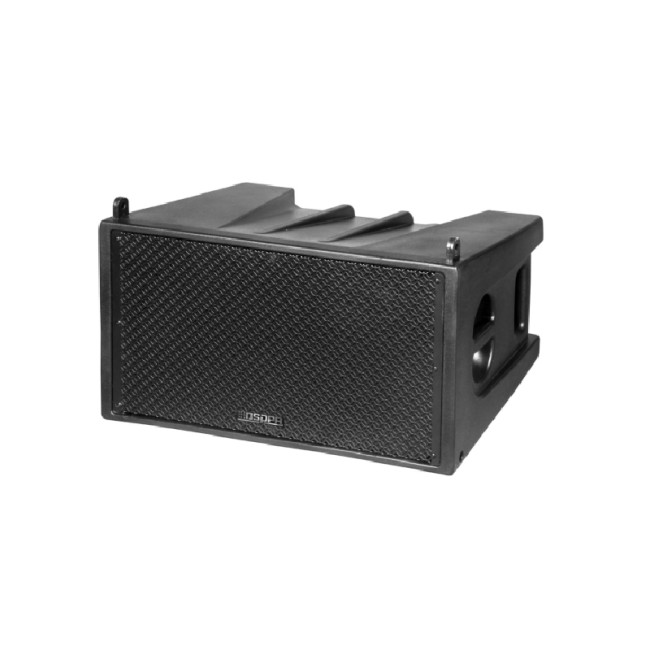

Weather-Resistant Passive Line Array Full-Range Loudspeaker

D7734
  • The D7734 is an all-weather passive line array full-range loudspeaker featuring a three-way configuration comprising dual 12-inch low-frequency drivers, dual 3.5-inch mid-frequency drivers, and dual 1.75-inch high-frequency drivers. It delivers powerful, high-fidelity sound reproduction with strong projection and exceptional clarity. Engineered with a rugged enclosure and IP66-rated all-weather construction, the system ensures reliable performance across a wide range of indoor and outdoor applications.
Overview Specifications Related Products Solutions Latest News & Cases

The D7734 is an all-weather passive line array full-range loudspeaker featuring a three-way configuration comprising dual 12-inch low-frequency drivers, dual 3.5-inch mid-frequency drivers, and dual 1.75-inch high-frequency drivers. It delivers powerful, high-fidelity sound reproduction with strong projection and exceptional clarity. Engineered with a rugged enclosure and IP66-rated all-weather construction, the system ensures reliable performance across a wide range of indoor and outdoor applications.


Specifications of Weather-Resistant Passive Line Array Full-Range Loudspeaker D7734


Model

D7734

System Configuration

2×12" LF, 2×3.5" MF, 2×1.75" HF

Frequency Response (±3dB)

LF: 60Hz-1kHz, MF+HF: 500Hz-18kHz

Crossover Point

600Hz

Sensitivity

LF: 101±2dB, MF+HF: 110±2dB

MAX. SPL.

LF: 130±2dB, MF+HF: 134±2dB

Input Impedance

LF: 8Ω, MF+HF: 16Ω

Rated Power

LF: 800W, MF+HF: 300W

Directivity (H)

90°

Dimensions (H×W×D)

374×756×550mm

Weight

39kg
