Home Professional AudioLine Array Speaker SystemOutdoor Line Array Loudspeaker Dual 10-Inch 650W Full-Range Waterproof Array Loudspeaker LA1420F

50Hz-18KHz ; 650W

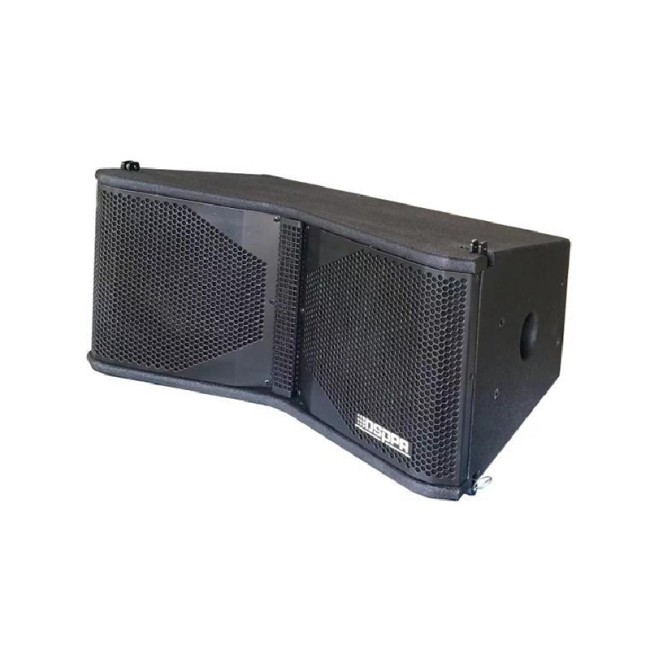

Dual 10-Inch 650W Full-Range Waterproof Array Loudspeaker

LA1420F
  • Fully waterproof, high-end, high-quality passive mid-high frequency line array loudspeaker.
  • Features superior radiation characteristics, delivering clear and detailed sonic reproduction with exceptional projection.
  • Offers high sensitivity and high SPL capability, combined with user-friendly installation.
Overview Specifications Related Products Solutions Latest News & Cases

This product is a high-end, high-quality passive mid-high frequency weather-resistant line array loudspeaker. It features superior radiation characteristics, delivering clear and detailed sonic reproduction with exceptional projection. The system also offers high sensitivity and high sound pressure level capability.


Specifications of Dual 10-Inch 650W Full-Range Waterproof Array Loudspeaker LA1420F


Model

LA1420F

Frequency Response

50Hz-18KHz

Rated Power

650W

Sensitivity (1W/m)

99±2dB

MAX. SPL.

128±2dB

System Composition

10″ woofer×2, 1.75″ tweeter×2

Rated Impedance

8Ω

Radiation Angle (H×V)

120°×10°

Color

Black

Net Weight

24kg

Dimensions (H×W×D)

330×610×490mm
