Home Commercial AudioCommercial AmplifierDante / DSP Amplifier 2-Channel 30W @ 4Ω Mini Dante Network Power Amplifier DT2004

2-Channel 30W / 4Ω

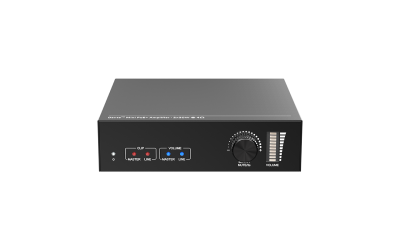

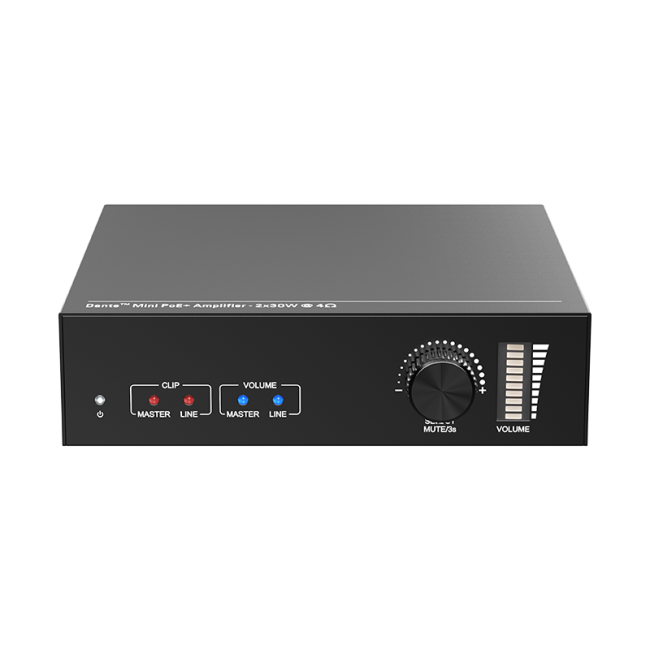

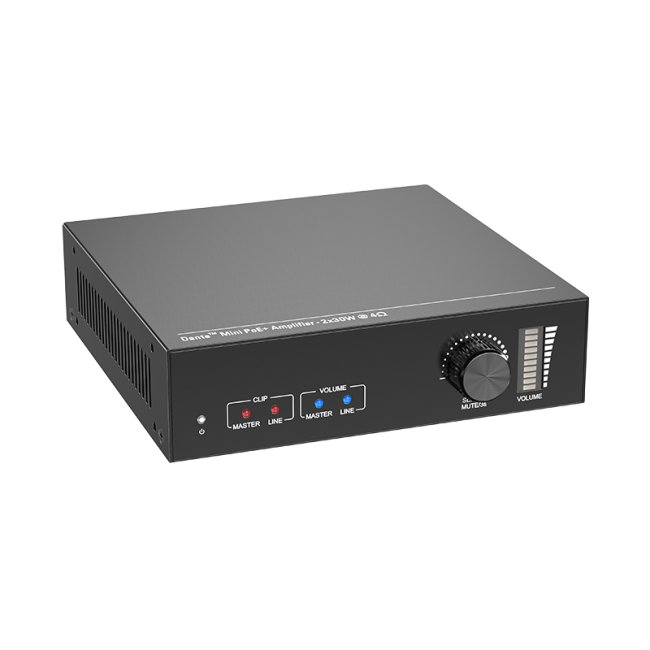

2-Channel 30W @ 4Ω Mini Dante Network Power Amplifier

DT2004
  • This 2-channel compact Dante power amplifier supports independent output volume adjustment.
  • Stereo operating mode: delivers 2×30W rated output per channel into 4Ω or 8Ω speaker loads.
  • Bridge operating mode: supports 1×60W single-channel output into an 8Ω load to meet higher power demands.
  • Full device management and parameter configuration through professional Dante Controller software.

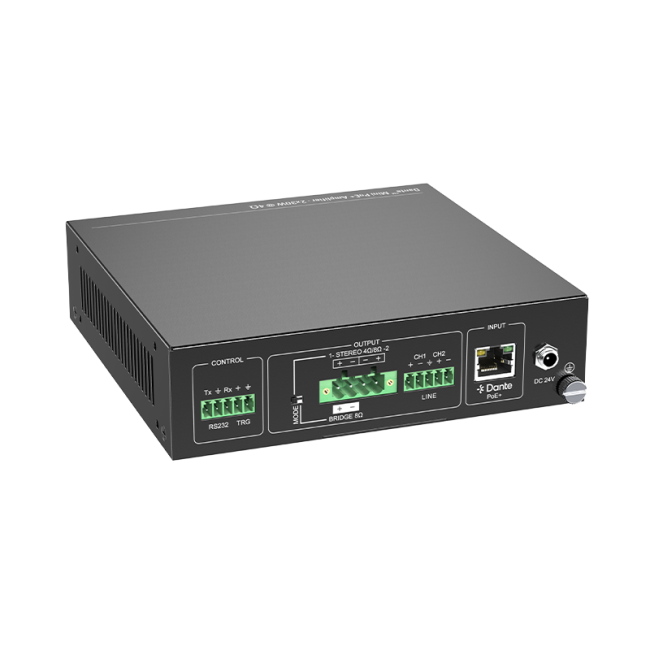

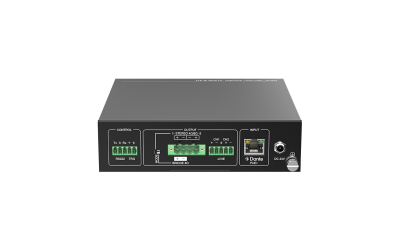

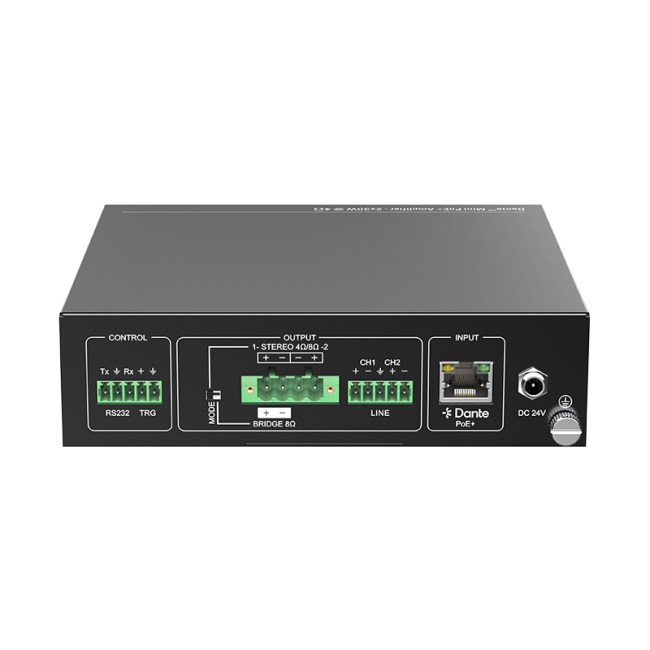

  • Equipped with one auxiliary line-level output (Line Out) port for signal cascading or extended connectivity.
  • Supports RS-232 serial control protocol and remote power trigger function, enabling seamless integration with third-party control systems.
  • Dual power supply options: DC 24V / 2.71A adapter power, or IEEE 802.3at standard PoE+ power supply via Ethernet cable.
Overview Specifications Related Products Solutions Latest News & Cases

The DT2004 is a compact 2-channel Dante network power amplifier designed for distributed audio systems where space, connectivity and installation flexibility matter. It delivers 2×30W output at 4Ω or 8Ω in stereo mode, with bridge operation providing 60W at 8Ω for higher power requirements.

With Dante audio networking, PoE+ or DC power options, independent digital volume control and Dante Controller management, the DT2004 simplifies amplifier deployment in small meeting rooms, classrooms, lecture halls, hospitality spaces and other commercial or institutional environments.



Model

DT2004

Audio Input

import

1 x Dante

Enter Connector

1 RJ45 port

Audio Output

output

1 x Power amplifier, 1 x Stereo audio

Output Connector

1 x Pluggable terminal (5P,3.81 mm)

1 x Pluggable terminal (4P,5.08 mm)

Audio Input Parameters

Dante import

24-bit uncompressed, with optional sampling rates of 44.1 kHz, 48 kHz, or 96 kHz

Main Output Parameters

output impedance

4/8Ω speaker output

rated power output

Stereo output: 2x30W@4Ω or 2x30W@8Ω

Bridge output: 1 x 60 W @ 8 Ω

frequency response

20Hz ~ 20kHz，± 3dB

noise-signal ratio（SNR）

DC Power:>85 dB (A-weighted)

Total Harmonic Distortion + Noise (THD+N)

At 1/8 rated power output, the value is <0.05%; at normal power output, it is 0.5%. The LPF has a cutoff frequency of 20 kHz and a notch depth of 3 dB.

Line Output Performance

Rated output level

1.0Vrms ± 0.5dB

Maximum Output Level

The voltage level is 3 V = 16 dB, which exceeds the nominal signal level of-10 dBV (316 mV) for standard electrical circuits.

frequency response

20Hz ~ 20KHz，± 3dB

noise-signal ratio（SNR）

>85 dB (A-weighted), bandwidth: 20 Hz to 20 kHz

Total Harmonic Distortion + Noise (THD+N)

<0.05%（-80 dB）

Crosstalk Isolation

>70dB

Regular

Amplifier Type

D class

source

DC 24V 2.71A

IEEE 802.3at Type 2, PoE+

AC Power Consumption

18 W @ 1/8 maximum output level

85 W @ maximum output level

working temperature

-10°C ~ +55°C

storage temperature

-25°C ~ +70°C

Storage Humidity

10% - 90%

Size (W*H*D)

166mm x 44mm x 160mm

net weight

895g
