Home Professional AudioLine Array Speaker SystemOutdoor Line Array Loudspeaker Weather-Resistant 600W Passive Line Array Subwoofer D7735

2×12" LF ; 50 Hz -300Hz ; 600W

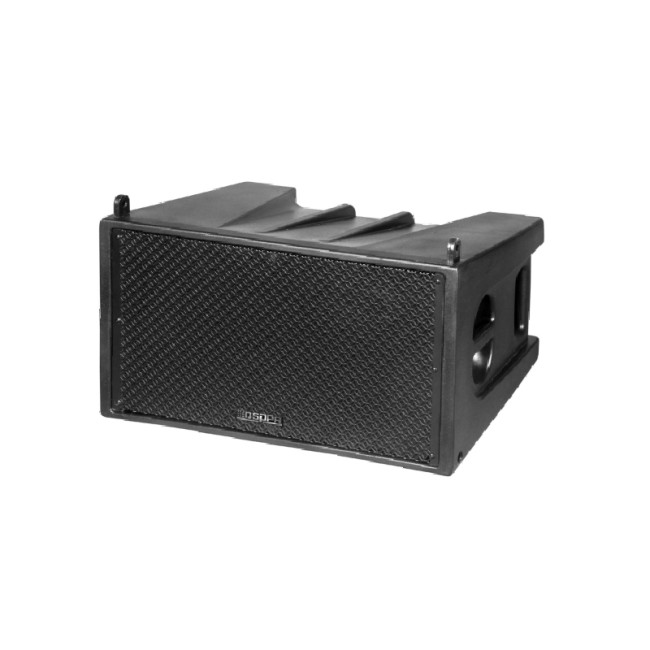

Weather-Resistant 600W Passive Line Array Subwoofer

D7735
  • Enclosure molded from polymer composite materials, featuring a five-layer waterproof and dustproof grille.
  • All-weather design compliant with IP66 protection rating.
  • Three-point suspension mounting system for straightforward and secure installation.
Overview Specifications Related Products Solutions Latest News & Cases

The D7735 is an all-weather passive line array subwoofer featuring dual 12-inch low-frequency drivers, delivering deep and impactful bass response with high fidelity and excellent transient impact. Engineered with a rugged enclosure and IP66-rated all-weather construction, the system ensures reliable performance in both indoor and outdoor applications. Equipped with a three-point suspension system, it allows flexible and secure installation for a variety of professional sound reinforcement setups.


Specifications of Weather-Resistant 600W Passive Line Array Subwoofer D7735


Model

D7735

System Configuration

2×12" LF

Frequency Response (±3dB)

50 Hz -300Hz

Sensitivity

98±2dB

MAX. SPL.

126±2dB

Input Impedance

8Ω

Rated Power

600W

Dimensions (H×W×D)

374×756×550mm

Weight

33kg
