Home Professional AudioLine Array Speaker SystemPassive Line Array Speaker 600W Professional Passive Line Array Subwoofer PL206S

1×15" LF ; 50Hz–300Hz ; 600W

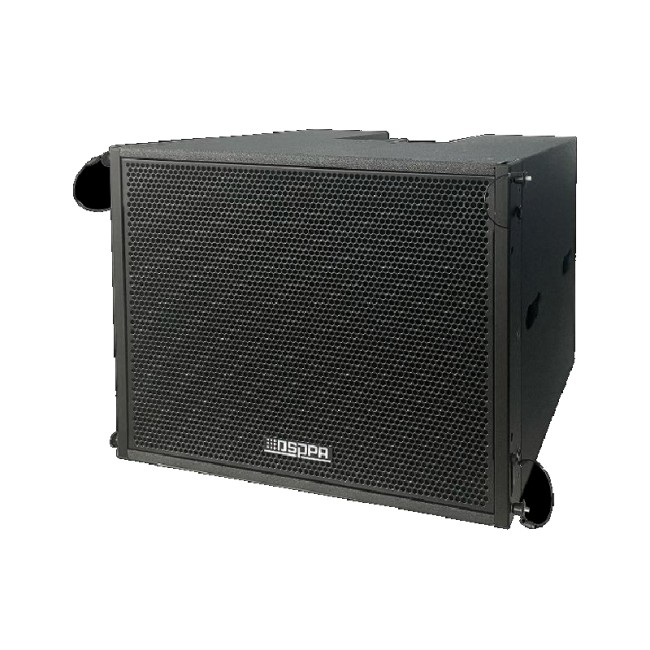

600W Professional Passive Line Array Subwoofer

PL206S
  • Features a high-power 15-inch long-excursion woofer, delivering fast, deep, and impactful low-frequency performance with excellent punch and transient response.
  • Enclosure constructed from professional-grade high-density plywood and finished with a durable polyurea coating, making it well suited for a variety of indoor venues including auditoriums and multi-purpose halls.
  • Quick-release angle-adjustment mechanisms on both sides of the enclosure enable rapid flying or stacking of multiple units, facilitating continuous array coverage with extended throw and uniform sound distribution.
Overview Specifications Related Products Solutions Latest News & Cases

The PL206S is a high-performance subwoofer engineered to complement line-array systems, delivering deep and impactful bass response spanning 50Hz to 300Hz. Equipped with a 15-inch long-excursion woofer, the system provides a rated power of 600W and achieves a maximum SPL of 123dB, ensuring fast, dynamic low-frequency reproduction with excellent impact and clarity. Its rugged enclosure and user-friendly design make it well suited for auditoriums, multi-purpose halls, and other venues requiring extended low-frequency coverage.


Specifications of 600W Professional Passive Line Array Subwoofer PL206S


Model

PL206S

System Configuration

1×15" LF

Frequency Response (±3dB)

50Hz–300Hz

Sensitivity

95±2dB

MAX. SPL

123±2dB

Input Impedance

8Ω

Rated Power

600W

Dimensions (H×W×D)

446×570×500mm

Weight

32kg
