Home Professional AudioLine Array Speaker SystemPassive Line Array Speaker Dual 600W 10-Inch Line Array Full-range Loudspeaker LA1421

10" Bass×2, 3" Treble×1 ; 60Hz– 20kHz ; 600W (AES)

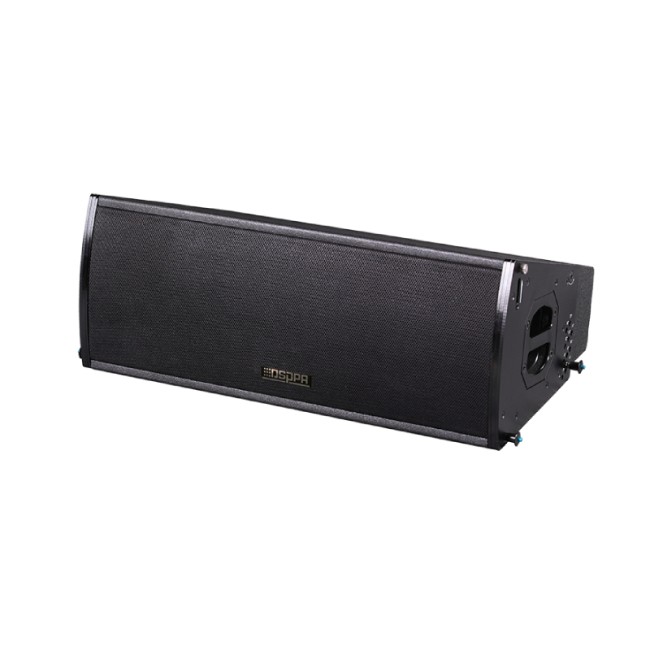

Dual 600W 10-Inch Line Array Full-range Loudspeaker

LA1421
  • High-end, high-quality passive mid-high frequency line array loudspeaker.
  • High-frequency drivers are mounted on a constant directivity horn, ensuring undistorted waveform output.
  • Features superior radiation characteristics, delivering clear and detailed sonic reproduction with exceptional vocal projection.
  • Offers high sensitivity and high SPL capability, combined with user-friendly installation.
  • Inter-enclosure angle adjustable from 0° to 20° for flexible array configuration.
Overview Specifications Related Products Solutions Latest News & Cases

The LA1421 is a high-end, high-quality passive line array full-range loudspeaker engineered for exceptional sonic performance. Equipped with dual 10-inch bass drivers and one 3-inch treble driver, it delivers a frequency response spanning 60Hz to 20kHz, ensuring clear and detailed sound reproduction. The constant directivity horn design ensures undistorted waveform output, while the system's high sensitivity and high SPL capability facilitate straightforward installation and powerful sound projection. With its superior radiation characteristics, the LA1421 provides a rich, immersive audio experience, making it well suited for large venues and outdoor events.


Specifications of Dual 600W 10-Inch Line Array Full-range Loudspeaker LA1421


Model

LA1421

Drive Unit

10" Bass×2, 3" Treble×1

Frequency Response

60Hz– 20kHz

Sensitivity (1m/ 1W)

103±2 dB

Max. SPL

131±2 dB

Rated Power

600W (AES)

Rated Impedance

8Ω

Directivity (H×V)

120°×20°

Color

Black

Dimension (W×D×H)

780mm×474mm×306mm

Weight

26kg
