Home Professional AudioLine Array Speaker SystemPassive Line Array Speaker 650W Passive Line Array Full-Range Loudspeaker PL210

2×10" LF, 1×3" HF ; 50Hz–18kHz ; 650W

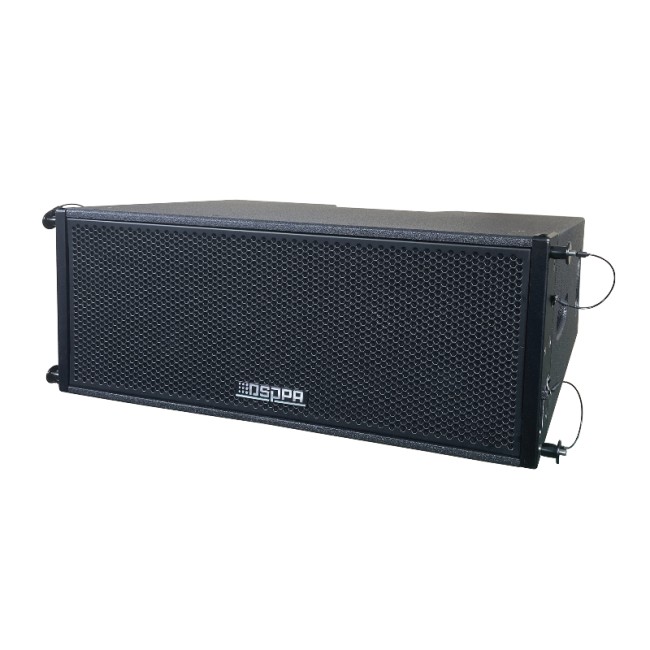

650W Passive Line Array Full-Range Loudspeaker

PL210
  • Features dual high-power 10-inch woofers and one 75mm compression driver, integrated with a precision-engineered crossover network for optimized acoustic performance.
  • Enclosure constructed from professional-grade high-density plywood and finished with a durable polyurea coating, making it well suited for a variety of indoor venues including auditoriums and multi-purpose halls.
  • Quick-release angle-adjustment mechanisms on both sides of the enclosure enable rapid flying or stacking of multiple units, facilitating continuous array coverage with extended throw and uniform sound distribution.
Overview Specifications Related Products Solutions Latest News & Cases

The PL210 is a compact yet high-output line array loudspeaker engineered to deliver clear and balanced sound reproduction across a wide frequency range of 50Hz to 18kHz. Featuring dual 10-inch low-frequency drivers and one 3-inch high-frequency driver, the system achieves high sensitivity and a maximum SPL of 128dB, with a rated power handling of 650W, making it well suited for indoor venues such as auditoriums and multi-purpose halls. Its rugged construction and flexible installation design ensure reliable performance across a wide range of professional applications.


Specifications of 650W Passive Line Array Full-Range Loudspeaker PL210


Model

PL210

System Configuration

2×10" LF, 1×3" HF

Frequency Response (±3dB)

50Hz–18kHz

Sensitivity

100±2dB

MAX. SPL

128±2dB

Input Impedance

8Ω

Rated Power

650W

Coverage (H×V)

120°×10°

Dimensions (H×W×D)

303×740×437mm

Net Weight

31kg
