Home Professional AudioAudio ProcessorClassical Audio Processor 16×16 Analog Professional Audio Processor D6696

118dB ; ≤0.005% (+4dBu 1kHz)

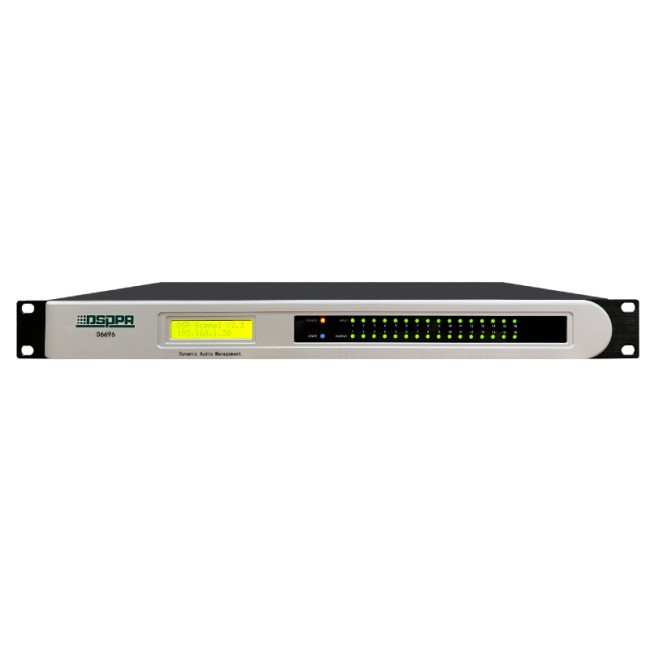

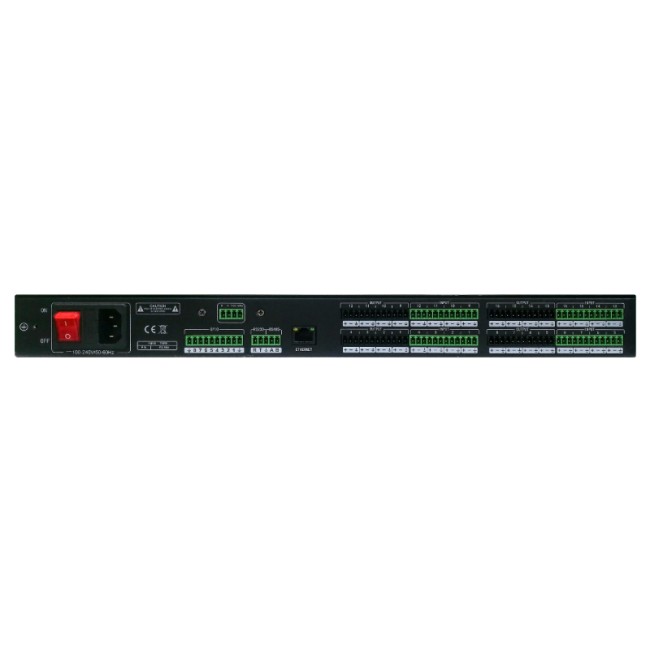

16×16 Analog Professional Audio Processor

D6696
  • 24-bit/48kHz sampling frequency, high-performance AD/DA converters, and a 40-bit floating-point DSP processor.
  • High-precision input sensitivity adjustment with 14 levels, 3dB steps, and a maximum input gain of 42dB.
  • Full-featured matrix mixing function, delivering exceptional clarity with comprehensive processing including EQ, GATE, COMP, LIMIT, and AGC.
  • GPIO supports 8-channel scene switching for quick operation, with RS232 and RS485 central control commands.
  • 60 scene presets with a user-friendly interface, supporting fast switching between Chinese and English.
  • TCP/IP control protocol for PC connection, enabling web-based quick control and parameter adjustment.
Overview Specifications Related Products Solutions Latest News & Cases

The D6696 is a 16×16 analog professional audio processor designed for advanced signal processing and system management in professional sound reinforcement applications. It combines 16 analog inputs and 16 analog outputs with a 40-bit floating-point DSP engine, high-performance AD/DA conversion and flexible matrix mixing.

With comprehensive processing functions including EQ, GATE, compressor, limiter and AGC, the D6696 provides precise control over audio signals across complex professional sound systems. TCP/IP, RS232 and RS485 control interfaces, together with GPIO scene switching and 60 presets, support flexible system configuration and operation.


Specifications of 16×16 Analog Professional Audio Processor D6696


Model

D6696

Input/Output

16×16

Input/Output Type

Analog

Signal Processor

40-bit floating-point DSP 400MHz

Bit Depth

24-bit

Sampling Frequency

48kHz

Input Impedance

＜10KΩ

Output Impedance

200Ω

A/D Dynamic Range

118dB

D/A Dynamic Range

118dB

Max Input Level

+18dBu

Max Output Level

+18dBu

Transmission Delay

4.1ms

Output Channel Delay

0ms～1500ms (Step:0.02ms)

THD+N

≤0.005% (+4dBu 1kHz)

Frequency Response

20Hz～20kHz ±0.3dB

CMRR

≥55dB

Crosstalk

≤-100dB

SNR

≥111dB (20–20KHz)

Dynamic Range

≥111dB (20–20KHz)

Noise Floor

≤-93dBu (20–20KHz)

Connection Type

TCP/IP, RS232, RS485

Preset

60

Size

482×253×44mm

Net/Gross Weight

3.3kg / 3.8kg
