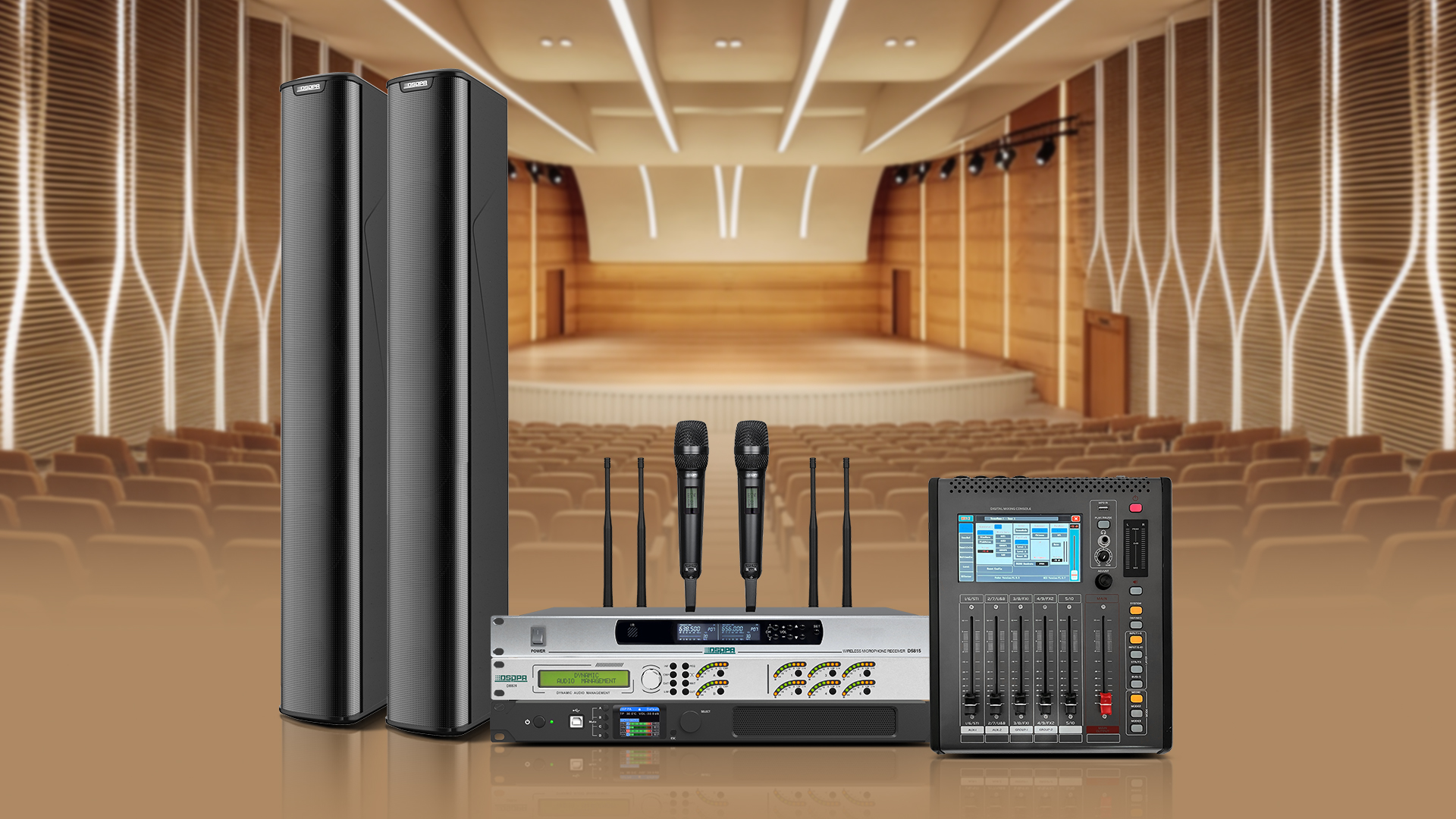

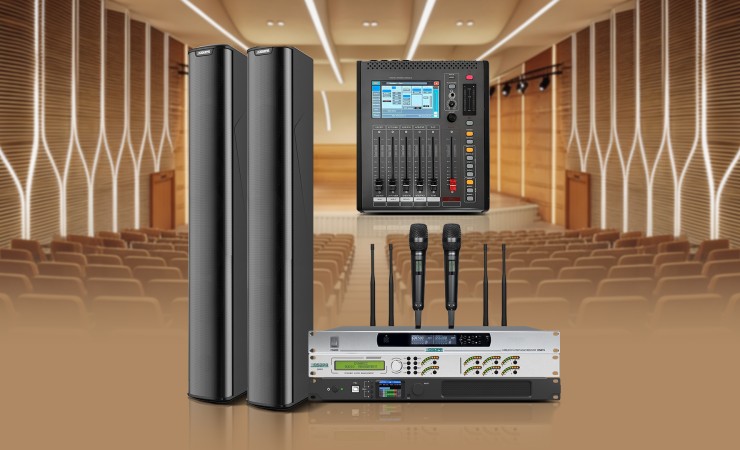

Professional Audio Solution for Small Multi-Purpose Theater



 I. Solution Overview

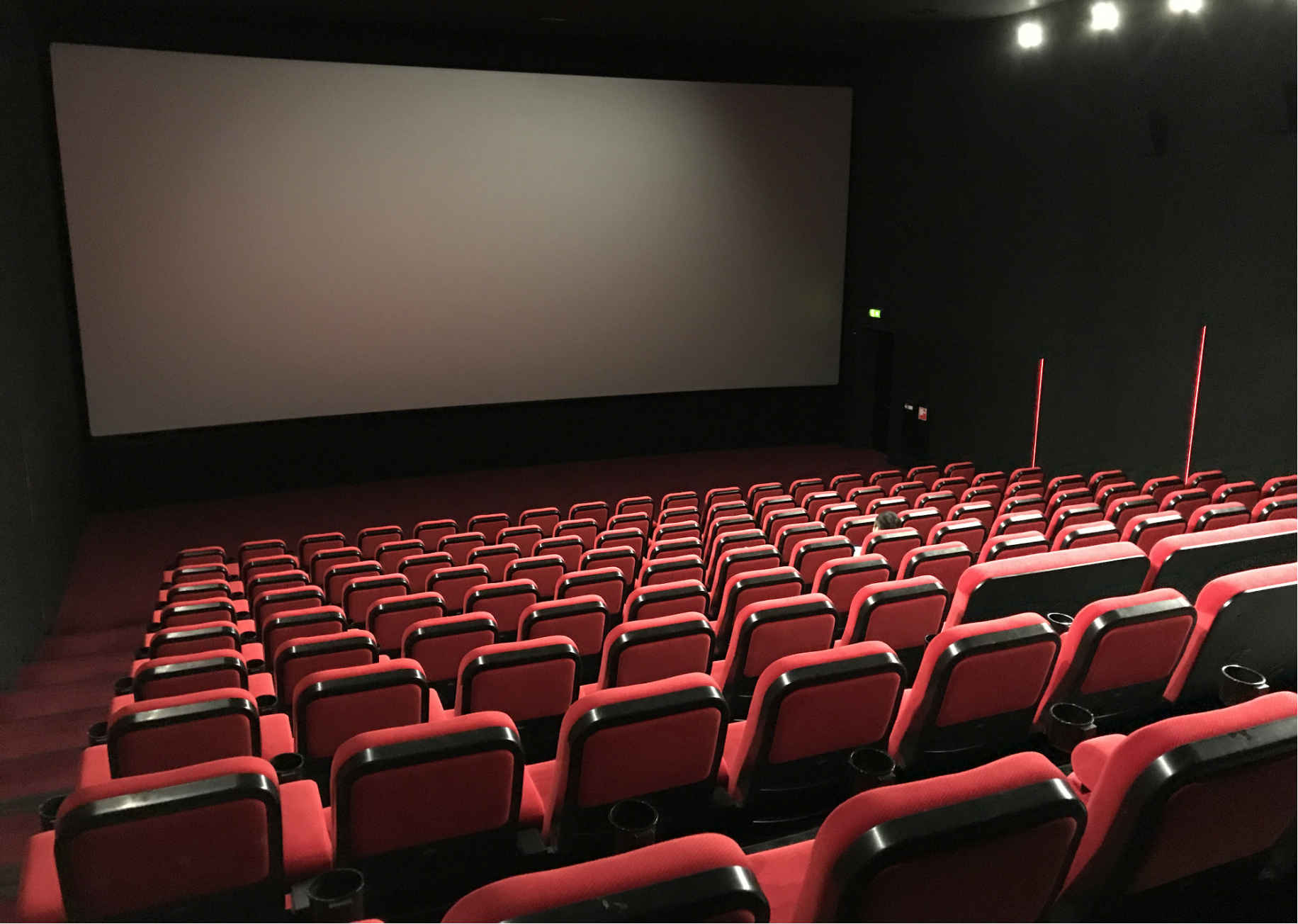

● Small multi-purpose theaters often face critical challenges in their audio reinforcement systems, including uneven sound coverage, insufficient sound clarity, complex system tuning, and limited adaptability across different applications. A thorough understanding of these requirements and challenges is essential for developing a high-fidelity, reliable audio solution, ensuring efficient operation across various theater scenarios.



Project Requirements


● Complex Acoustic Environment: Small spaces are prone to sound reflection, echo, and excessive reverberation, resulting in uneven sound distribution and reduced listening quality.

● High-fidelity Audio Reinforcement for Both Music and Speech: For live performances such as popular music shows, the system must provide excellent low- and mid-frequency reproduction, delivering clear instrument layering and natural, transparent vocals. Meanwhile, it must also meet the high intelligibility requirements of speech reinforcement, achieving a balance between musical richness and speech clarity.
● Versatile Application Requirements: The system needs to support quick switching between different scenarios, such as drama performances and concerts, while accommodating various audio sources including microphones, musical instruments, and other input devices.
● High Requirements for Operation and Maintenance: The system should be easy to operate, stable, and reliable, with convenient maintenance to ensure long-term performance and efficient management.


 II. Small Theater Application Solution (100 Seats)




Solution Description:


● Digital Mixing Console CM1612: Featuring 10 MIC inputs and a 7-inch high-definition touchscreen, the digital mixing console supports 32 scene presets, providing intuitive operation and efficient system control.

● Main PA Column Speaker DSP8300: A 270W column speaker is designed with a wide coverage angle and high sound pressure level, ensuring clear, balanced, and powerful sound distribution throughout the theater.
● Professional Audio Processor D8826: A 2-in 6-out digital audio processor provides precise equalization, delay, and crossover management, optimizing sound field performance and overall audio quality.
● IP Network Digital Power Amplifier DDA43A: A highly efficient Class D amplifier supporting network-based remote monitoring and control, it delivers high conversion efficiency, energy savings, and reliable system operation.



No.

Model

Product Name

Quantity

1

D5821

True Diversity UHF Wireless MIC System (with 2 Handheld MICs)

1PC

2

D6561

Handheld Dynamic Microphone

1PC

3

CM1612

12-Channel Professional Mixing Console

1PC

4

D8826

High-End Professional 2-Input 6-Output Audio Processor

10PCS

5

DDA43A

IP Network Digital Amplifier with DSP

2PCS

6

DSP8300

270W Array Loudspeaker

10PCS


Note: This solution is for reference only. Please contact us for specific requirements.



 Application Advantages


Signal Transmission Path:


● Various Audio Sources / Microphones → CM1612 Digital Mixing Console (Mixing, Effects Processing, Scene Presets) → D8826 Audio Processor (Feedback Suppression, Delay, Sound Field Calibration, Signal Zoning) → DDA43A 4-Channel IP Digital Power Amplifier (Secondary DSP Processing, Power Amplification) → DSP8300 Series Column Speakers (Sound Reinforcement)



Core Advantages

● High-Fidelity Sound Quality: The line array column speaker technology ensures long-throw sound projection and uniform coverage. Combined with professional audio processing, it delivers a pure, detailed, and immersive listening experience.
● Intelligent Scene Management: The 7-inch high-definition touchscreen of the digital mixing console, combined with 32 scene presets, enables one-touch switching between different modes, significantly reducing on-site tuning complexity and improving operational efficiency.
● Professional Mixing & Processing: With powerful DSP processing capabilities and versatile interfaces, the system enables precise sound adjustment and detailed audio optimization, easily meeting the sound reinforcement requirements of complex performances and conferences.
● Dual-Layer DSP Digital Architecture: The mixing console handles front-end audio mixing, while the D8826 processor focuses on feedback suppression and sound field optimization. This dual-stage digital processing architecture delivers cleaner sound, enhanced spatial depth, and a more refined listening experience.

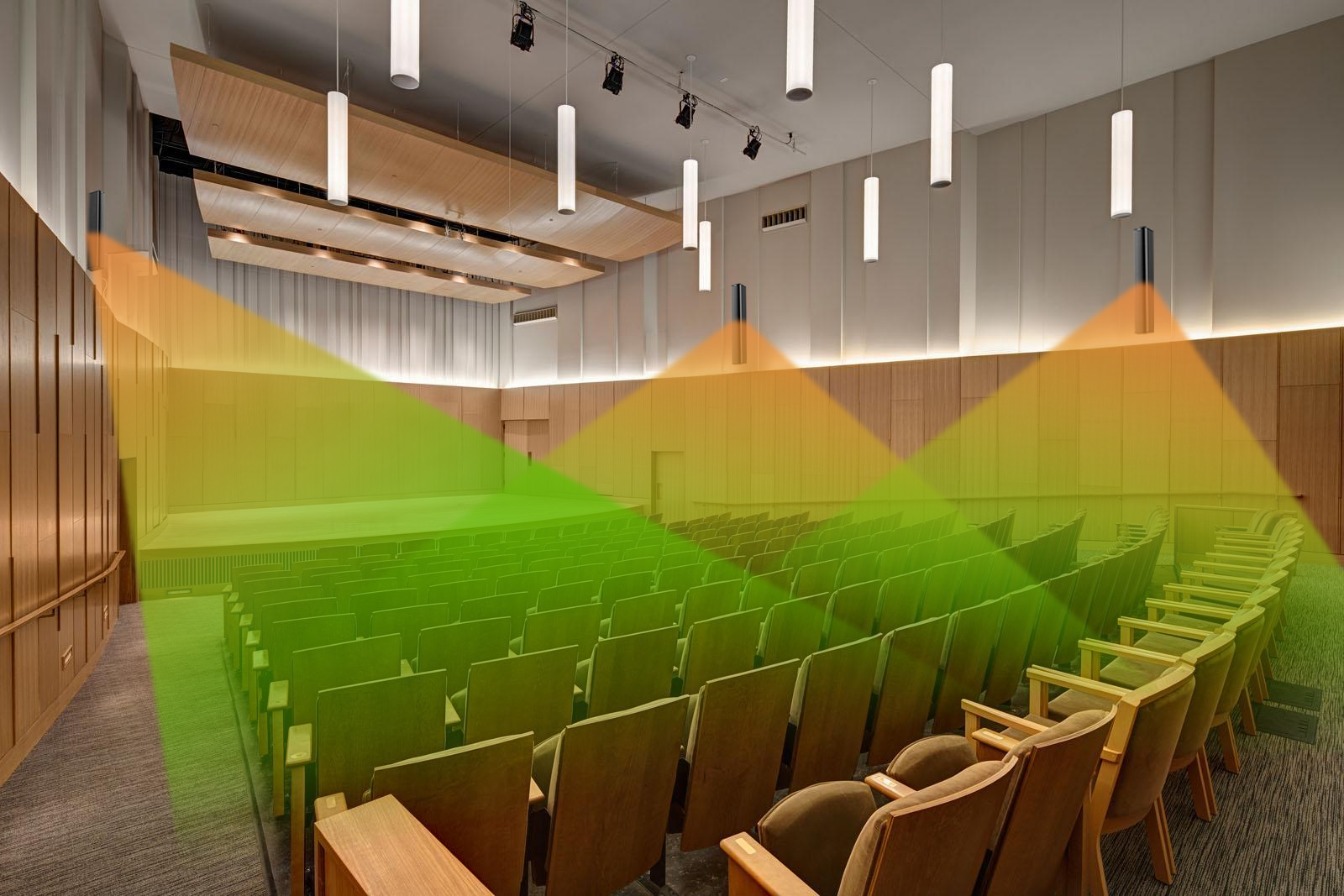

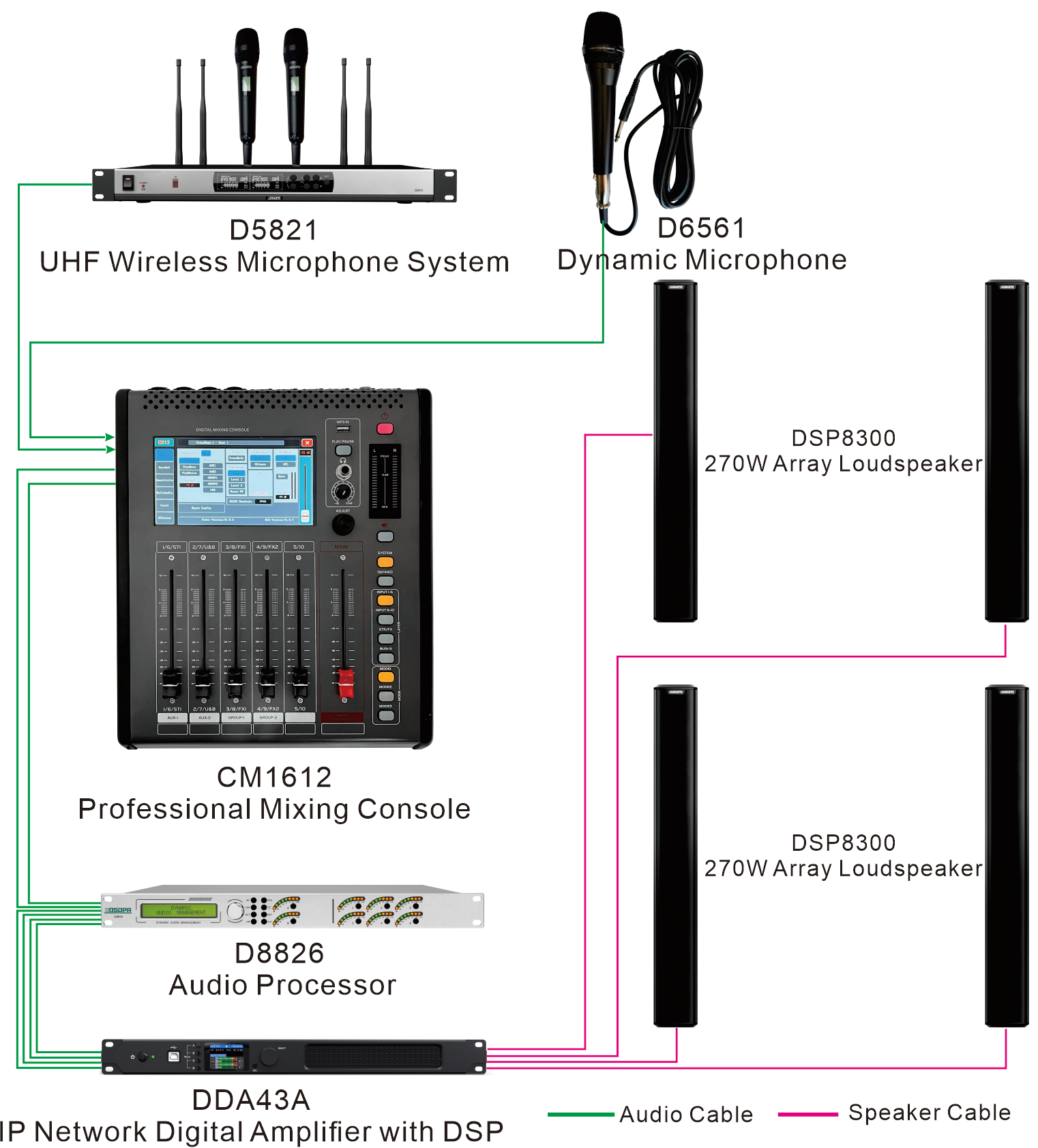

Application Illustration

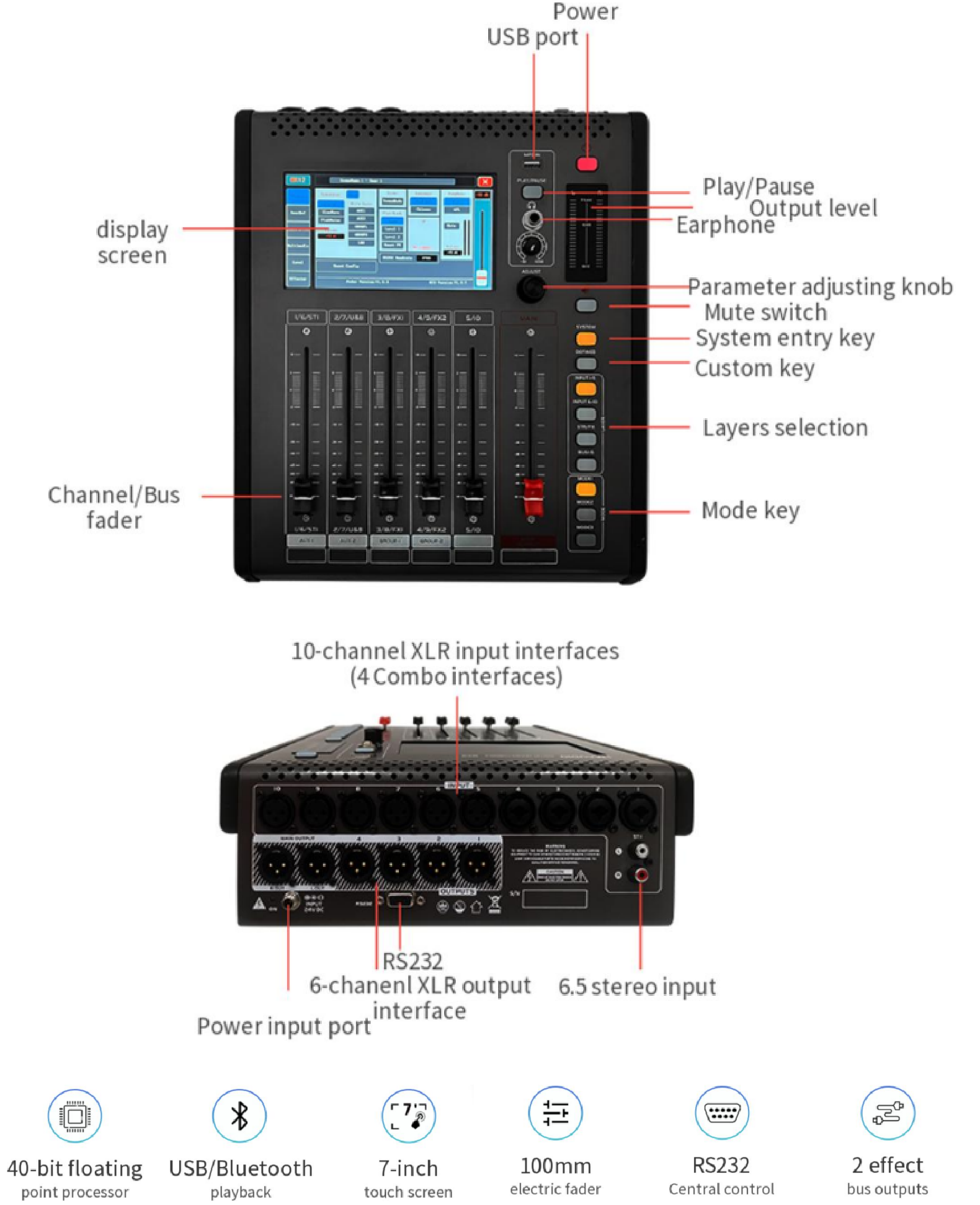

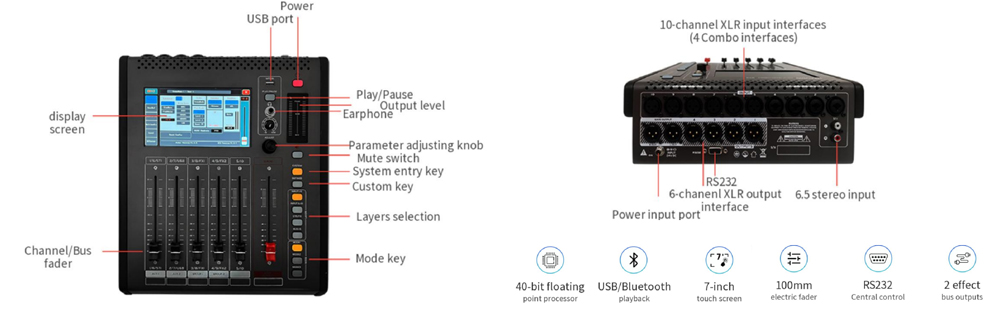

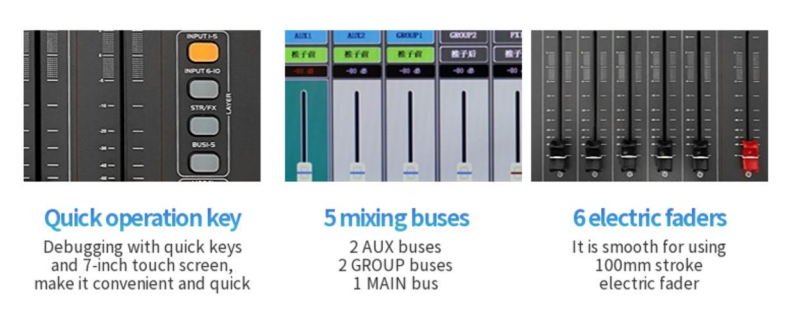

 III. Product Introduction - CM1612 12-Channel Professional Mixing Console





Features:


● 10-channel MIC inputs and 2-channel stereo inputs
● 1 stereo line input channel
● 6 customizable XLR output ports
● 5 mixing buses (2 AUX buses, 2 GROUP buses, 1 MAIN bus)
● 2 FX buses (effect sending buses)
● 31-band graphic equalizer (GEQ)
● 1 headset monitor output port
● 1 USB port, supporting USB music playback
● 7-inch 1024 × 600 high-definition touchscreen
● 6 motorized faders with 100mm travel
● 3 shortcut keys for quick scene loading
● 1 RS232 port, support centralized control
● Supports saving and loading of 32 scene presets

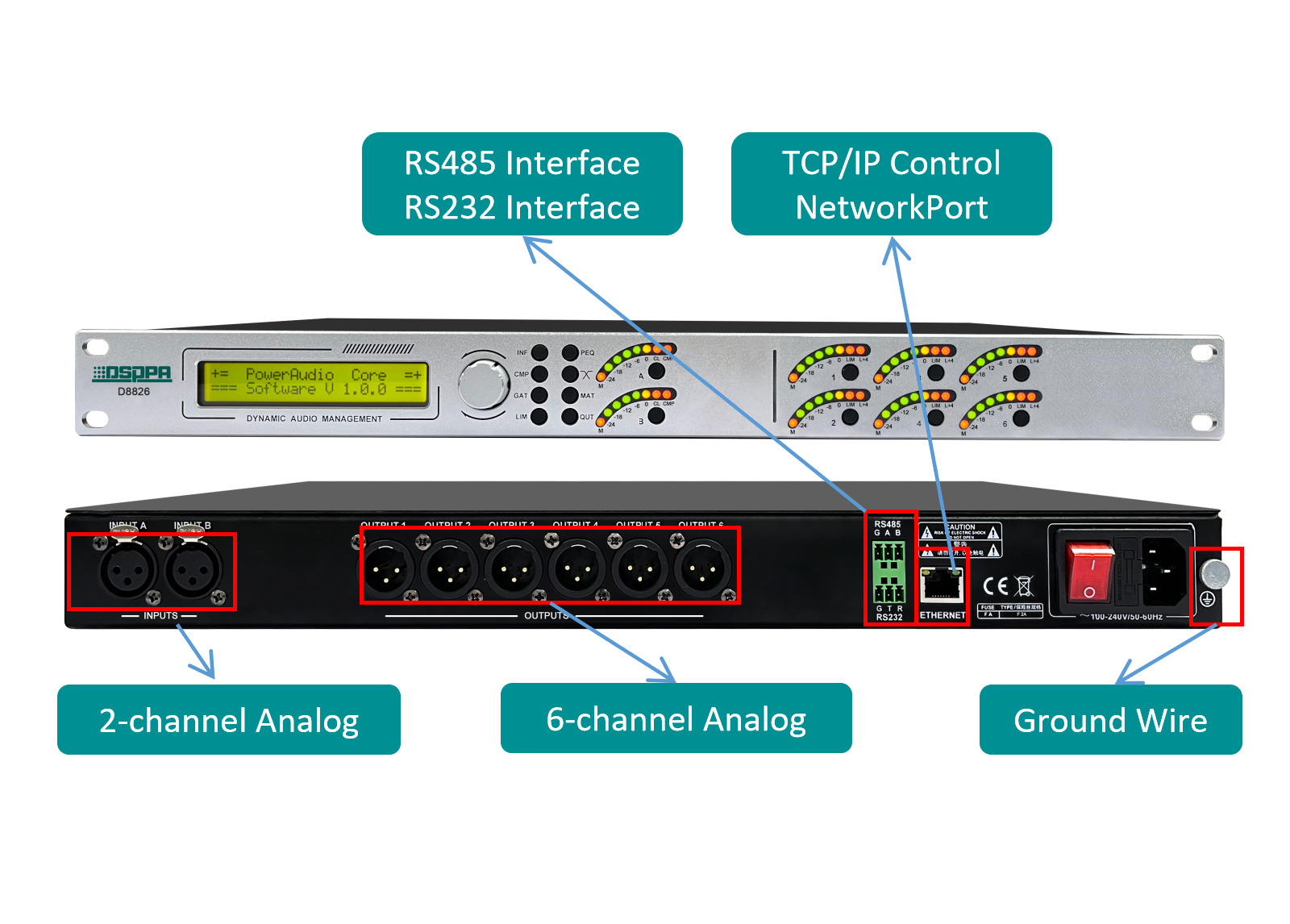

 IV. Product Introduction - D88 Series Professional Audio Processor

Model

Input

Output

D8826

2*XLR

6*XLR

D8836

3*XLR

6*XLR

D8848

4*XLR

8*XLR


Fully Balanced Analog Interfaces + RS232/RS485/TCP/IP Control



● With refined input signal processing and intelligent routing capabilities, the D88 Series ensures clear, powerful, and distortion-free sound performance in various applications. It serves as a key component for achieving system flexibility and high-fidelity audio reproduction.

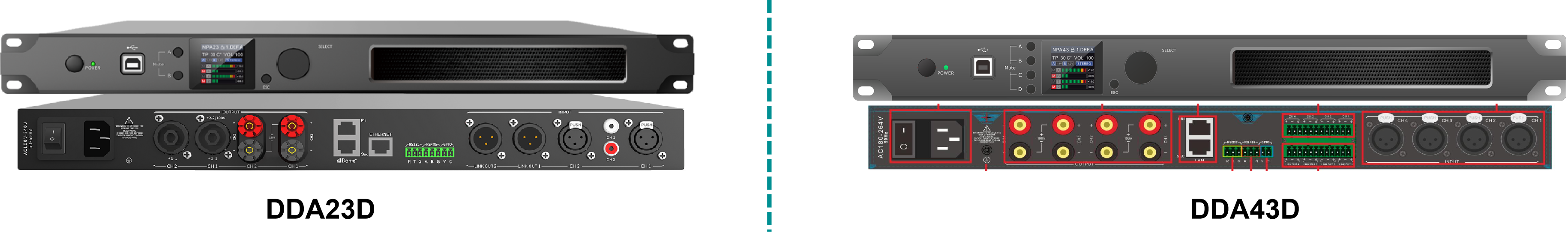

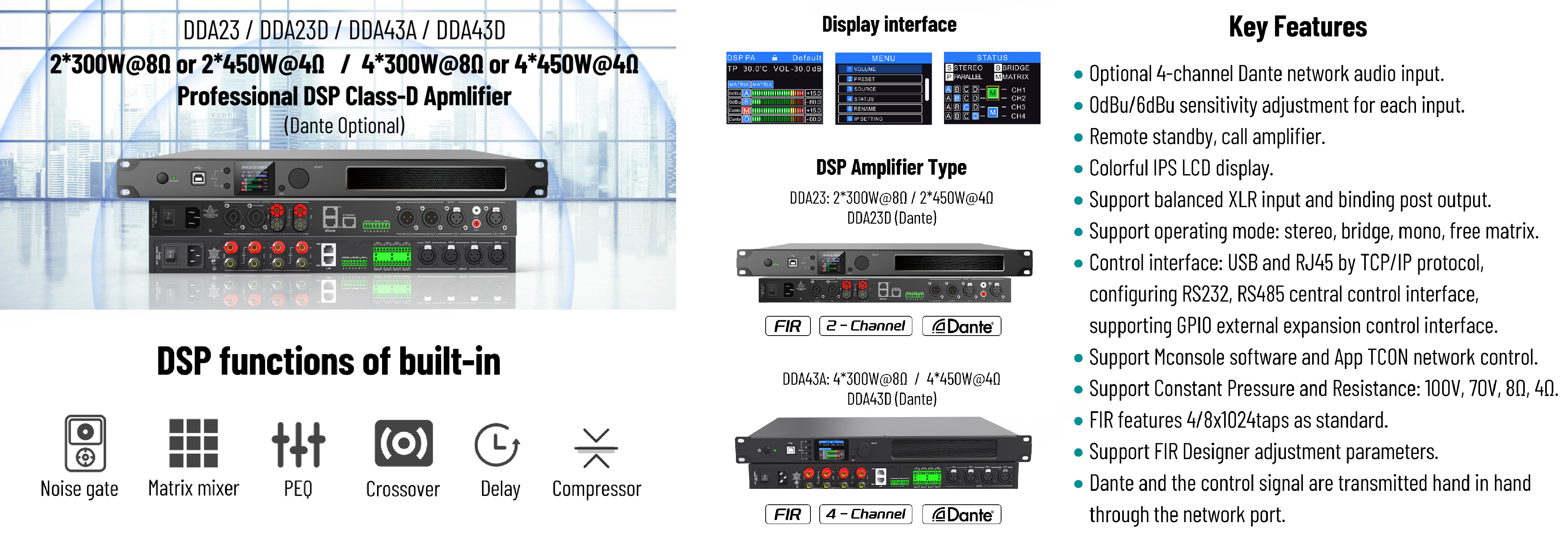

 V. Product Introduction - DDA43A IP Network Professional Amplifier with DSP



Core Value: The DDA43A provides stable and powerful drive support for column speakers, ensuring detailed, rich, and dynamic sound performance. Through intelligent network-based management, it enables real-time system monitoring and remote maintenance, significantly enhancing the stability, manageability, and service life of the entire audio system. It is an ideal choice for professional sound reinforcement applications.

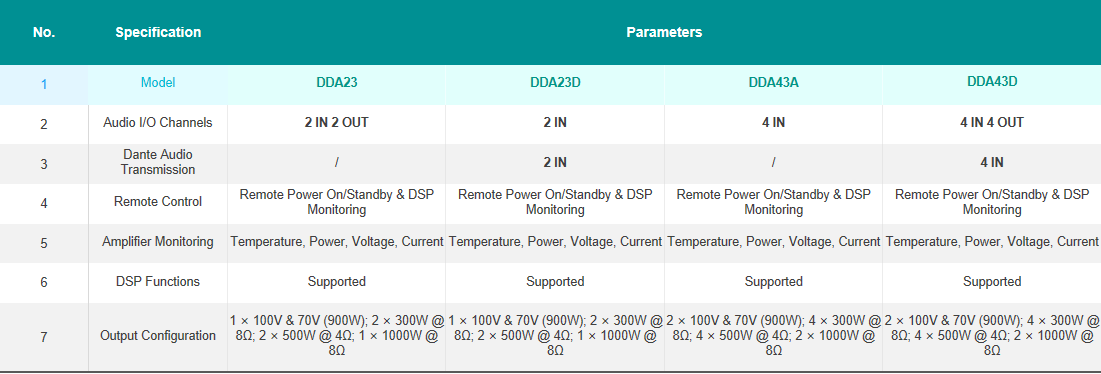

 VI. DDA Series Power Amplifier Feature Comparison

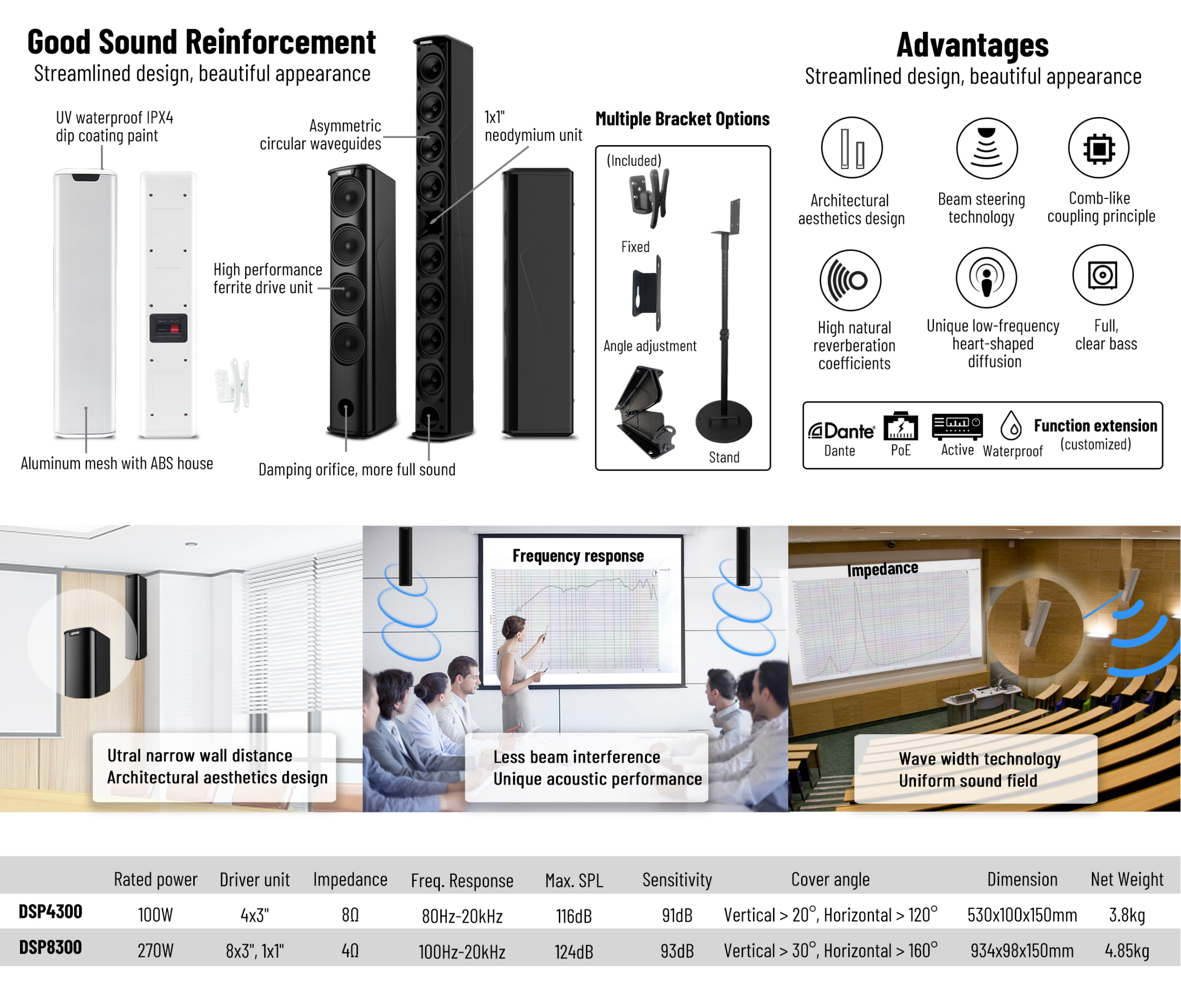

 VII. Product Introduction - DSP8300 Array Column Speaker


Features:


● Streamlined design with an elegant and modern appearance
● ABS plastic enclosure reinforced with glass fiber, providing excellent durability and structural strength
● Delivers smooth and natural high frequencies with full and clear bass reproduction
● Equipped with 4 × 3" high-performance ferrite drivers for powerful and balanced sound output
● UV-resistant waterproof coating with IPX4 protection rating, suitable for both indoor and outdoor installations
● UL94V-0 flame-retardant material available as an option
● Optional smart installation accessories for flexible deployment
● Equipped with leveling devices, quick-release handle mechanisms, and anti-vibration rubber pads for convenient installation and stable operation


Applicaions:


● Medium and large lecture halls, multi-purpose auditoriums, churches, and government conference rooms

● Airport and railway station waiting halls, exhibition centers, and long commercial corridors

● High-reverberation and long-distance sound reinforcement applications, providing more consistent sound coverage and reducing the volume

● imbalance between near and far listening areas found in traditional speaker systems

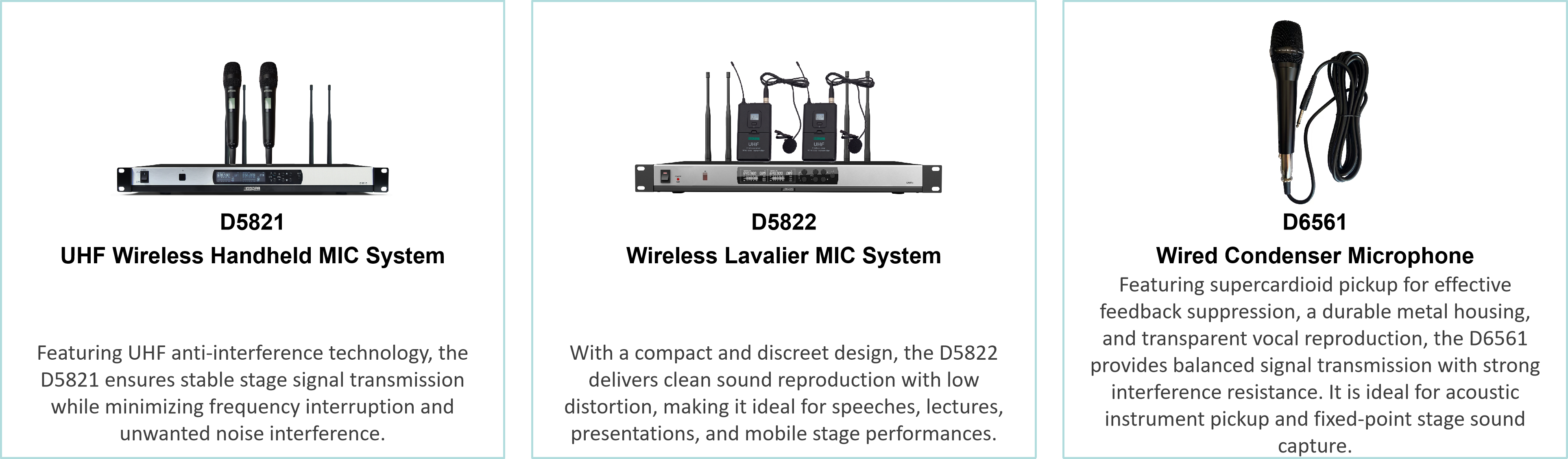

 VIII. Wireless Mirophone System


Serving as the front-end audio capture solution of the system, our wireless microphone solutions provide clear and reliable audio capture for various performances, speeches, and conference applications, serving as a solid foundation for high-quality sound reinforcement systems.


Core Value: The wireless microphone system provides flexible microphone combinations to meet diverse sound pickup requirements, from dynamic stage performances to static conference presentations. It ensures high-fidelity and reliable audio capture from the very beginning of the signal chain, delivering dependable performance for every voice and performance.


 IX. Application Scenarios



With a versatile system design, this solution supports multiple applications including conferences, live performances, and background music entertainment. It is ideal for various small and medium-sized cultural, commercial, and educational spaces, delivering flexible and high-quality audio experiences.

List of Products Related to the Above Solution

NEW HOT

120W 4.5"×4 8Ω

120W Column Surface-Mount Loudspeaker

DSP6120
HOT

100W 3"x4 8Ω

100W Commercial Column Wall Mount Array Loudspeaker

DSP4300
HOT

50W 2.5”×2 8Ω

50W Commercial Column Wall Mount Speaker with Racetrack Speaker Driver

DSP2405

Latest Commercial Solutions

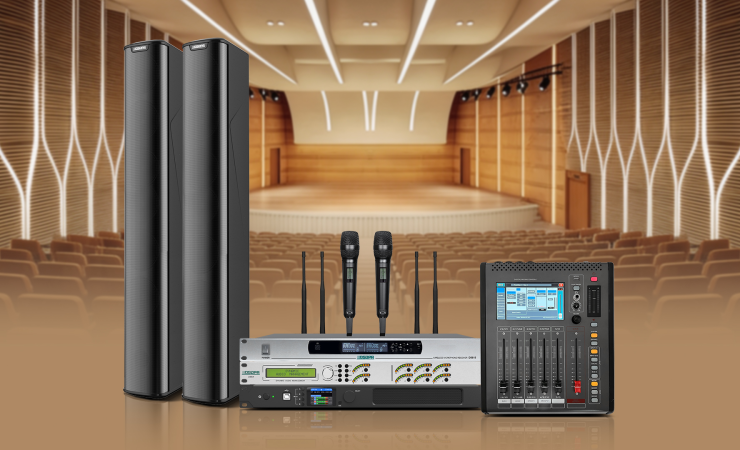

Professional Audio Solution for Small Multi-Purpose Theater
